AP Series Amplified Piezoelectric Actuators

AP Series Amplified Piezoelectric Actuators
  • View Specifications
  • Enquiry
  • Obtain a quote

The PiezoDrive AP Series displacement actuators utilize an advanced flexural mechanism and high performance piezoelectric stack actuators to provide an exceptionally large range of motion, fast response, and sub-nanometer resolution. The advanced dual-hinge flexure mechanism significantly outperforms competing devices due to its significantly higher in-plane and out-of-plane stiffness, greater mechanical efficiency, and higher resonance frequency. The dual-hinge flexure design also results in extremely compact dimensions.

Applications include: Nanopositioning, Biomedical, Microscopy, Precision machining, Vibration control, High-speed valves, and Optics.

Actuator Range Force Resonance $AU Buy Now
AP120 120 um 11 N 900 Hz $AU 1063 Buy Now
AP350B 350 um 6 N 400 Hz $AU 1221 Buy Now
AP340 340 um 16 N 460 Hz $AU 1151 Buy Now
AP350 350 um 18 N 480 Hz $AU 1160 Buy Now
AP830 830 um 90 N 230 Hz $AU 1683 Buy Now

SA Series 150V Piezoelectric Stack Actuators

150V Piezoelectric Stack Actuators
  • View Specifications
  • Enquiry
  • Obtain a quote

The PiezoDrive SA family of stack actuators are high performance multilayer stack actuators with a vacuum compatible polymer coating for improved reliability and protection against dust and humidity. PiezoDrive actuators are designed for applications that require long range, high force, nanometre resolution and high speed. The SA stack actuators are perfectly matched to the range of PiezoDrive amplifiers and driver modules.

Applications include: Nanopositioning, Microscopy, Precision machining, Vibration control, Hydraulic pumps, High-speed valves, and Optics.

Actuators Length Range Force $AU Buy Now
SA030305 5 mm 5.6 um 330 N $AU 35 Buy Now
SA030306 6 mm 7 um 330 N $AU 35 Buy Now
SA030310 10 mm 14 um 330 N $AU 56 Buy Now
SA030318 18 mm 25 um 330 N $AU 79 Buy Now
SA050510 10 mm 14 um 900 N $AU 52 Buy Now
SA050520 20 mm 31 um 900 N $AU 93 Buy Now
SA050536 36 mm 56 um 900 N $AU 163 Buy Now
SA070718 18 mm 28 um 1800 N $AU 106 Buy Now
SA070742 42 mm 70 um 1800 N $AU 226 Buy Now

SR Series 150V Piezoelectric Ring Stacks

150V Piezoelectric Ring Stacks
  • View Specifications
  • Enquiry
  • Obtain a quote
  • Standard Terms

The PiezoDrive SR ring stacks are high performance multilayer actuators with a vacuum compatible polymer coating and a large central aperture. The SR rings stacks are perfectly matched to the range of PiezoDrive amplifiers and driver modules.

Applications include: Optics, Microscopy, Nanopositioning, and Precision machining.

Actuator Length OD ID Range Force $AU Buy Now
SR080410 10 mm 8 mm 4.5 mm 14 um 1300 N $AU 88 Buy Now
SR080418 18 mm 8 mm 4.5 mm 28 um 1300 N $AU 130 Buy Now
SR120610 10 mm 12 mm 6 mm 14 um 3000 N $AU 128 Buy Now
SR120620 20 mm 12 mm 6 mm 30 um 3000 N $AU 260 Buy Now

SB Series 200V Piezoelectric Stack Actuators

200V Piezoelectric Stack Actuators
  • View Specifications
  • Enquiry
  • Obtain a quote

The PiezoDrive SB stack actuators are high performance multilayer stack actuators with thermoplastic encapsulation for improved reliability and protection against dust and humidity. PiezoDrive actuators are designed for applications that require long range, high force, nanometre resolution, and high speed. The SB actuators are perfectly matched to the range of PiezoDrive amplifiers and driver modules.

Applications include: Nanopositioning, Microscopy, Precision Machining, Vibration Control, Hydraulic Pumps, Valves, and Optics.

Actuator Length Range Force $AU Buy Now
SB050510 10 mm 14 um 700 N $AU 53 Buy Now
SB050520 20 mm 28 um 700 N $AU 111 Buy Now
SB050540 40 mm 56 um 700 N $AU 222 Buy Now
SB070720 20 mm 28 um 1400 N $AU 143 Buy Now
SB070740 40 mm 56 um 1400 N $AU 291 Buy Now

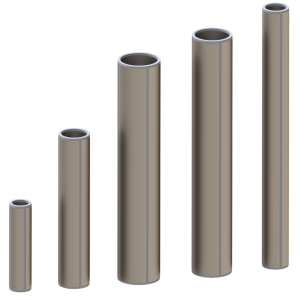

TB Series Piezoelectric Tube Scanners

TubeDiagram
  • View Specifications
  • Enquiry
  • Obtain a quote

Piezoelectric tube scanners are thin cylinders of radially poled piezoelectric material with four external electrodes and a solid or quadrant internal electrode. When a voltage is applied to one of the external electrodes, the actuator wall expands which causes a vertical contraction and a large lateral deflection of the tube tip. A circumferential electrode can be used for vertical or radial extension and contraction.

Piezoelectric tube scanners are used extensively in scanning probe microscopes and applications such as fiber stretching and beam scanning.

Actuator Length Diameter Thickness Max. Voltage Scan Range $AU Buy Now
TB1005 10.0 mm 5.0 mm 0.66 mm ± 264 V 3.8 um $AU 74 Buy Now
TB1206 12.7 mm 6.35 mm 0.635 mm ± 254 V 4.8 um $AU 174 Buy Now
TB2005 20.0 mm 5.0 mm 0.66 mm ± 264 V 15 um $AU 130 Buy Now
TB3306 33.0 mm 5.0 mm 0.66 mm ± 203 V 32 um $AU 234 Buy Now
TB3507 35.0 mm 7.0 mm 0.66 mm ± 264 V 39 um $AU 209 Buy Now
TB5009 50.8 mm 9.5 mm 0.66 mm ± 264 V 52 um $AU 290 Buy Now
TB6309 63.5 mm 9.525 mm 0.66 mm ± 264 V 80 um $AU 311 Buy Now
TB7312 73.66 mm 12.62 mm 0.89 mm ± 356 V 82 um $AU 405 Buy Now

BA Series Insulated Piezoelectric Benders

Insulated Piezoelectric Benders
  • View Specifications
  • Enquiry

The BA Series are piezoelectric bimorph actuators poled in the parallel configuration. An insulated resin coating is applied to the external surfaces to protect the actuator and to eliminate electrical faults. The BA Series actuators are simple to drive with a PDu100B or PDm200B amplifier module.

Actuator Range Voltage Force Length Width $AU Buy Now
BA4902 1.3 mm 200V or ±±50V 0.1 N 49 mm 2.1 mm $AU 17 Buy Now
BA3502 0.6 mm 150V or ±±37V 0.07 N 35 mm 2.1 mm $AU 17 Buy Now
BA6020 2.6 mm 150V or ±±37V 0.5 N 60 mm 20 mm $AU 61 Buy Now

BA Series +/-100V Piezoelectric Bender

100V Piezoelectric Bender
  • Download Datasheet
  • Enquiry
  • Obtain a quote

The BA4510 is a piezoelectric bimorph actuator poled in the parallel configuration with a two-wire electrical connection. The BA4510 is simple to drive with a PDu100B or PDm200B amplifier module.

Actuator Range Voltage Force Length Width $AU Buy Now
BA4510 2 mm ±±100 V 0.2 N 45 mm 10 mm $AU 27 Buy Now
