Description

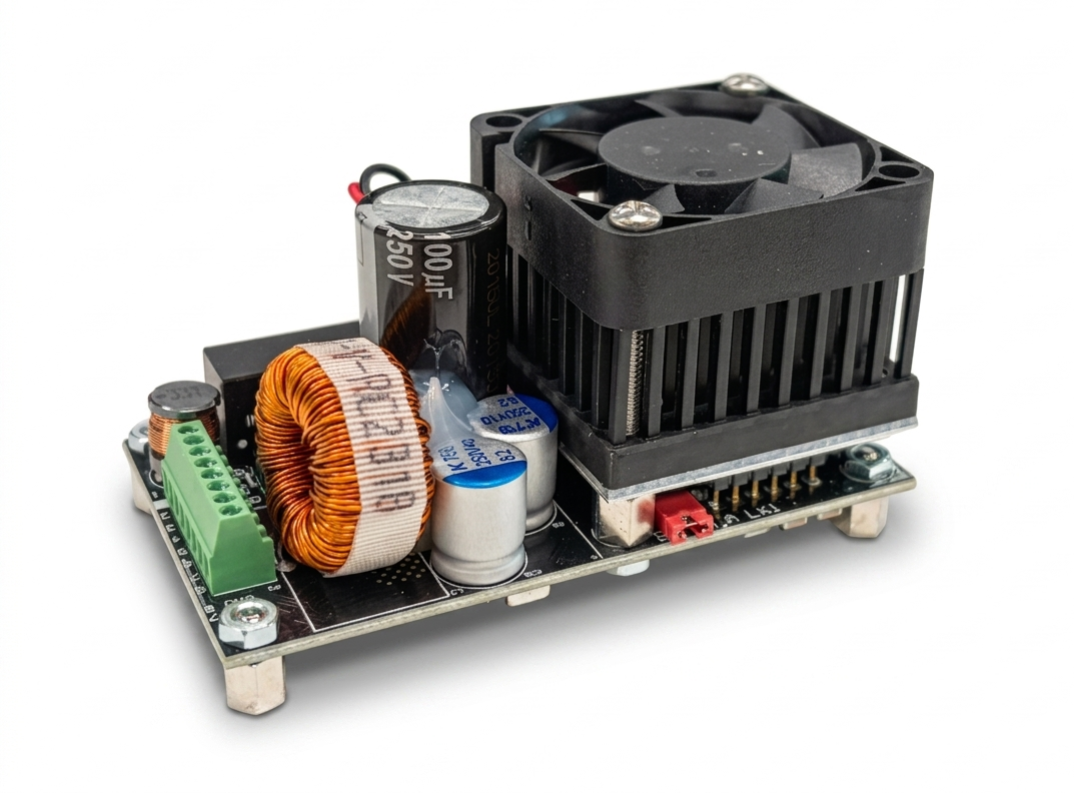

The MX200 is a complete power supply and high-performance linear amplifier module for driving piezoelectric actuators. The MX200 can drive stack actuators; standard piezoelectric actuators; two wire benders; and three-wire piezoelectric benders requiring a bias voltage. Output currents of up to 1 Amp are developed at frequencies up to 100 kHz with less than 100 uV noise (10Hz to 10kHz).
Key features include:
- Selectable output voltage from +100 V to +/-200 V
- Peak output current: 1 Amp
- Bias supply for bender actuators
- Signal Bandwidth: 200 kHz
- Power Bandwidth: 106 kHz (180 Vp-p)
- Noise: 100uV (10 Hz to 10 kHz)
- Comprehensive overload protection
- Supply voltage from +18 V to +36 V
- Dimensions: 80 x 46 x 40 mm (L x W x H)
- Weight: 95 g
