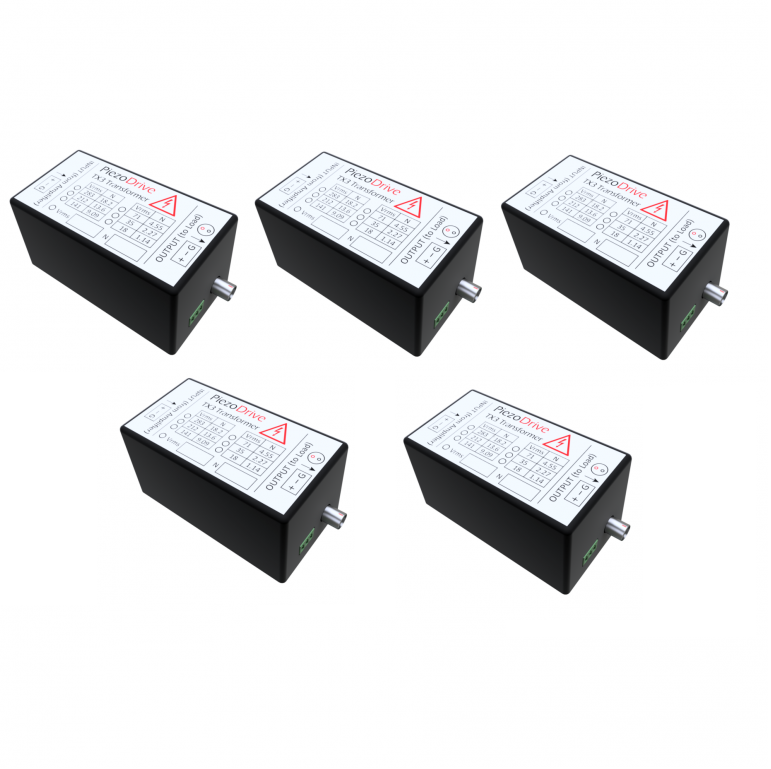

TX210-Kit1 Ultrasonic Transformer Kit

$USD1,000.00

Product Quantity

TX210-800 Ultrasonic Transformer

Available!

1

TX210-600 Ultrasonic Transformer

Available!

1

TX210-400 Ultrasonic Transformer

Available!

1

TX210-200 Ultrasonic Transformer

Available!

1

TX210-100 Ultrasonic Transformer

Out of stock

1

TX210-50 Ultrasonic Transformer

Available!

1

Insufficient stock

SKU: TX210-Kit1 Categories: ,

Description

External transformer kit for the PDUS210-FLEX ultrasonic driver. Allows different output voltage and current ranges to be obtained by changing the transformer. Includes the following transformers:

Order Code Turns
Ratio
Voltag
pk-pk
Voltage
RMS
Amps
pk-pk
Amps
RMS
Optimal
Load Ohms
Frequency
kHz
TX210-800 18.18 800 282 2 0.71 400 20 – 200
TX210-600 13.64 600 212 2.6 0.92 225 20 – 200
TX210-400 9.09 400 141 4 1.4 100 20 – 200
TX210-200 4.55 200 70 8 2.8 25 20 – 200
TX210-100 2.27 100 35 16 5.7 6.25 20 – 200
TX210-50 1.14 50 17 32 11.3 1.56 20 – 200



Additional information

Weight 1 kg
Dimensions 27 × 20 × 10 cm
